UPR Single Valve Oil Catch Can – Plug N Play – 2021-2025 F150 5.0L (For Whipple too)

DESCRIPTION

DESCRIPTION:

This kit is 100% Modular and can be fully disassembled or emptied and cleaned in seconds. It utilizes UPR Braided Hose and Billet Hose Ends to give you the Strongest and Best Performing Setup Possible- No cheap stock lines here that have been cut and spliced on! Featuring the New UPR Plug N Play ™ Catch Can Fittings, you can empty the can without removing the catch can or catch can lines from your engine, or with UPR Exclusive Push Button Fittings, you can remove the entire catch can system easily for service if need be. No drilling, no cutting so your truck can be returned 100% back to stock in minutes. It even has the largest oil capacity in for a compact highly efficient internal diffuser system. 4 ounces will give you the needed oil capacity to be sue the catch can does not overfill.

FEATURES

FEATURES:

• Show Quality Finish
• Plug N Play ™ fittings
• Installs in 10 minutes
• Prevents Oil from Entering Intake
• Exclusive 4 Stage Design Traps Oil
• Innovative Diffuser Tube and Chamber
• Can measures 2.5" x 5" 6oz Capacity
• High Quality CNC Machined Billet Aluminum
• 5/8" Oil Resistant Continental Braided Hose included
• Improves Fuel Economy, Throttle Response & Performance
• High Quality Billet Aluminum Catch Can Fittings (Not Plastic Like the Competition)
• Black Anodized Finish

INCLUDES:

• 5/8" Continental Braided Hoses
• Plug N Play ™ quick release connectors & billet fittings
• Single Valve Billet Catch Can (Exclusive 4 Stage Design)

FITMENT

VEHICLE FITMENT:

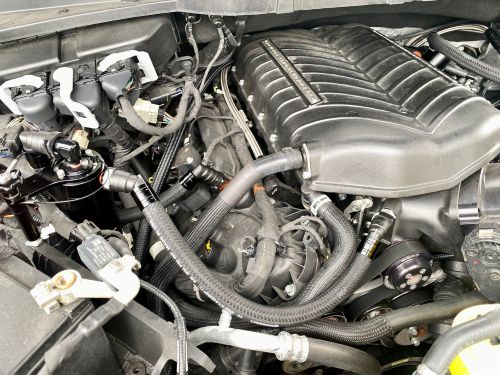

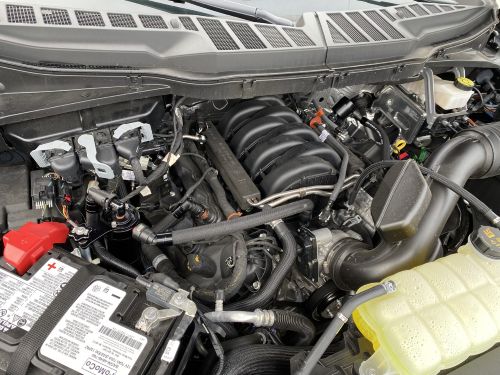

2021-2025 Ford F-150 5.0 V8 Coyote, and F-150 5.0 V8 with Whipple Supercharger, Raptor R.

OPTIONS

OPTIONS INFO:

2021-up F150 Clean Side Separator:
Upgrade your existing catch can system with the UPR Clean Side Separator. Includes Plug n Play Fittings to allow you to install the UPR Clean Side Catch Separator without any modifications. Manufactured from Domestic T-6 6061 Aluminum bar stock and finished off using only the best Diamond cutters to exceed your expectations of what a superior product should fit and look like. Especially beneficial to modified trucks or trucks with added Superchargers or Turbo kits. As crankcase pressure builds up under BOOST, it will be forced out of the driver side valve cover fitting. This clean side separator will still allow clean air to enter the crankcase as the factory intended, but will catch oil and impurities when crankcase pressure is high, preventing that gunk from getting into your cold air kit and throttle body. Once normal driving resumes, the Clean Side Separator will allow the oil mist to return to the crankcase.

UPR Billet Pro Series Check Valve:
These are larger higher flowing check valves than the standard check valve. It will increase the vacuum through the catch can and deliver better crankcase evacuation. The improved crankcase evacuation translates to increased MPG and more responsive low speed drivability.

UPR Billet One-Way Valve Cover Breather:
These are Valve Cover Breathers with a one-way valve inside of it. These are designed to allow excess/positive crankcase pressure to exit through the breather when in boost. Then it closes to return to vacuum while driving to prevent un-metered air from entering to maintain perfect drivability. These are also ideal for vehicles in very cold or freezing weather as it allows crankcase pressure to escape until condensation or frozen condensation in the PCV hoses melts or thaws. This is a must to ensure maximum engine seal life.

UPR SS Magnetic Drain Plug:
The Stainless Steel magnetic drain plug would replace the drain plug on the bottom of the catch can with an allen head plug that has a magnet embedded into it. It will attract any ferrous metal material to it so the user can inspect it.

UPR Catch Can Drain Line Kit:
The drain line kit includes a drain valve, hose and fittings needed to install the drain valve. It allows the user to relocate the drain somewhere easier to access like the wheel well opening or bumper area.

**You would select either the Stainless Steel Magnetic Drain Plug or The Catch Drain Line Kit, not both. If neither are selected the bottom of the catch can will have a standard plug installed.

UPR Adjustable Billet PCV Fitting:
The adjustable Billet PCV fitting which includes 4 different size jets. It eliminates the failure prone factory PCV and still allows for the needed restriction.
