Kinetik Motorsport Coyote Crank Saver Stud Kit – Ford 5.0L

The absolute best solution for achieving a strong, stable, and safe clamp on your crank pulley.

DESCRIPTION

DESCRIPTION:

Continuing from their success of the GT500 Crank Saver Stud Kit, Kinetik is now offering a crankshaft stud/nut/washer combo for all vehicles carrying the Coyote engine. Designed at Kinetik Motorsport and made by ARP from their ‘2000’ material, this is the absolute best solution for achieving a strong, stable, and safe clamp on your crank pulley.
A must-have for anyone running aftermarket superchargers, oversized/overdrive balancers, using 2-step launch control, or for those who occasionally tap the rev limiter.

ZERO modifications required to vehicle or engine. Installation can be done in your driveway, and will take roughly an hour to complete.

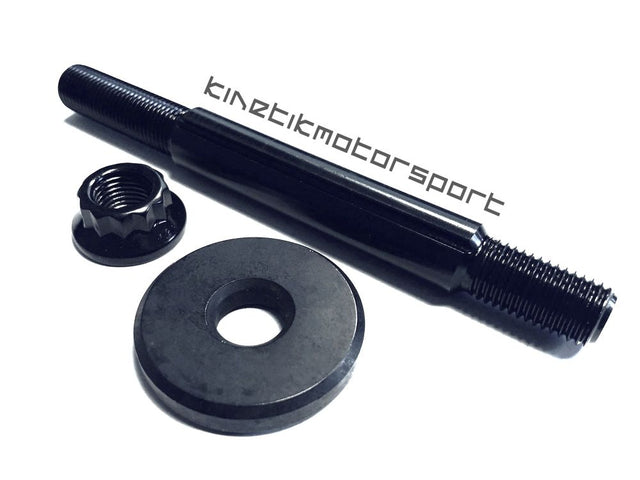

  • Includes stud, washer, nut, and packet of ARP Ultra-Torque
  • Made by ARP – Made in USA

*If you are using this stud with a Procharger, you will need to use an ATI balancer. The stud will not work with the factory hub adapter.

INSTALLATION

INSTALLATION INSTRUCTIONS:

Do NOT use the Crank Saver to install crankshaft pulley. Use the installation tools designated by the manufacturer.

PREPARATION: (if using in new crankshaft, proceed to installation section)

  • Remove crankshaft bolt and washer. Removal of the pulley is not required.
  • Clean inside of crankshaft snout to the best of your ability using WD-40, aerosol brake cleaner, and a bristled brush. (e.g. pipe cleaner or toothbrush)
  • Any material left inside the snout may prevent stud from fully seating.
  • Running a thread chaser (M12x1.5) is not required, but highly recommended. An alternative is to remove washer from stock bolt, then fully thread the bolt into crankshaft to clear the lower portion of threads.
  • Clean and remove any residue from the surface of your crankshaft pulley where the washer will rest.

INSTALLATION:

  • Apply a small amount of ARP Ultra-Torque lube to bottom portion of the Crank Saver stud (short side), and thread stud into the crankshaft by hand.

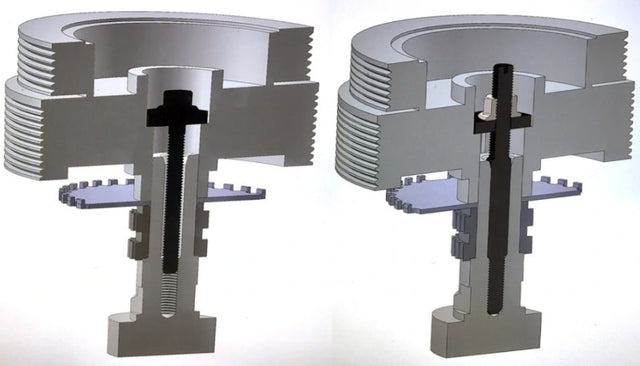

  • Ensure the stud is fully seated using the 4mm Allen, but do not torque. If fully seated, the top portion of threads will begin just below the face of the crankshaft snout. If you meet resistance before the stud reaches that point, DO NOT try to force. The most common reason for this is residual thread locker and/or dirt in the lower portion of threads, where the current bolts do not reach. Remove the stud and return to preparation section.
  • Liberally apply ARP Ultra-Torque lube onto the flange and threads of the nut and top side (nut side) of the washer. Install washer, then thread nut onto stud by hand.
  • Torque using a 12-point 16mm socket. Recommended torque: 140-150 lb-ft
  • Tip: Place transmission in gear and firmly apply parking brake to prevent engine spinning while torquing.

Instructions supplied by Kinetik Motorsport 2021

Before you order, click the tabs and read the important, but maybe not so exciting stuff.

DESCRIPTION

DESCRIPTION:

Continuing from their success of the GT500 Crank Saver Stud Kit, Kinetik is now offering a crankshaft stud/nut/washer combo for all vehicles carrying the Coyote engine. Designed at Kinetik Motorsport and made by ARP from their ‘2000’ material, this is the absolute best solution for achieving a strong, stable, and safe clamp on your crank pulley.
A must-have for anyone running aftermarket superchargers, oversized/overdrive balancers, using 2-step launch control, or for those who occasionally tap the rev limiter.

ZERO modifications required to vehicle or engine. Installation can be done in your driveway, and will take roughly an hour to complete.

  • Includes stud, washer, nut, and packet of ARP Ultra-Torque
  • Made by ARP – Made in USA

*If you are using this stud with a Procharger, you will need to use an ATI balancer. The stud will not work with the factory hub adapter.

INSTALLATION

INSTALLATION INSTRUCTIONS:

Do NOT use the Crank Saver to install crankshaft pulley. Use the installation tools designated by the manufacturer.

PREPARATION: (if using in new crankshaft, proceed to installation section)

  • Remove crankshaft bolt and washer. Removal of the pulley is not required.
  • Clean inside of crankshaft snout to the best of your ability using WD-40, aerosol brake cleaner, and a bristled brush. (e.g. pipe cleaner or toothbrush)
  • Any material left inside the snout may prevent stud from fully seating.
  • Running a thread chaser (M12x1.5) is not required, but highly recommended. An alternative is to remove washer from stock bolt, then fully thread the bolt into crankshaft to clear the lower portion of threads.
  • Clean and remove any residue from the surface of your crankshaft pulley where the washer will rest.

INSTALLATION:

  • Apply a small amount of ARP Ultra-Torque lube to bottom portion of the Crank Saver stud (short side), and thread stud into the crankshaft by hand.
  • Ensure the stud is fully seated using the 4mm Allen, but do not torque. If fully seated, the top portion of threads will begin just below the face of the crankshaft snout. If you meet resistance before the stud reaches that point, DO NOT try to force. The most common reason for this is residual thread locker and/or dirt in the lower portion of threads, where the current bolts do not reach. Remove the stud and return to preparation section.
  • Liberally apply ARP Ultra-Torque lube onto the flange and threads of the nut and top side (nut side) of the washer. Install washer, then thread nut onto stud by hand.
  • Torque using a 12-point 16mm socket. Recommended torque: 140-150 lb-ft
  • Tip: Place transmission in gear and firmly apply parking brake to prevent engine spinning while torquing.

Instructions supplied by Kinetik Motorsport 2021

No Sales to California

We are not selling any products to CA. Any orders with CA billing or shipping will be cancelled minus a 5% fee and refunded.


NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. THE SALE, USE, OR INSTALLATION OF THIS PRODUCT MAY ALSO BE ILLEGAL NATIONWIDE UNDER THE FEDERAL CLEAN AIR ACT (42 U.S.C. § 7522(A)(3)).

SKU: kin-crank-saver
$120.00
