UPR Single Valve Oil Catch Can - Plug N Play - 2015-2020 FORD F-150 5.0L WHIPPLE GEN's 4 & 5

This Ford F-150 5.0 V8 single valve Plug N Play™ catch can kit for the Whipple Gen 4 and 5 Supercharger is the perfect fit for your engine bay. This system will include our Pro Series check valve to have a tighter seal while you are in boost. UPR's Shorter Style CSS with the braided line will keep oil from splashing back into the intake tube at higher RPM.

Fits These Vehicles:
2018-2020 Ford F-150 5.0 V8 Coyote Whipple Gen 4 and Gen 5 Supercharged

FEATURES

• 8oz Capacity
• Black Anodized Finish
• Prevents Oil from Entering Intake
• Exclusive 4 Stage Design Traps Oil
• Innovative Diffuser Tube and Chamber
• High Quality CNC Machined Billet Aluminum
• Plug N Play™ fittings at Catch Can connections
• 5/8" Oil Resistant Continental Braided Hose included
• Innovative Adjustable Mounting Bracket (360° Rotation)
• Improves Fuel Economy, Throttle Response & Performance

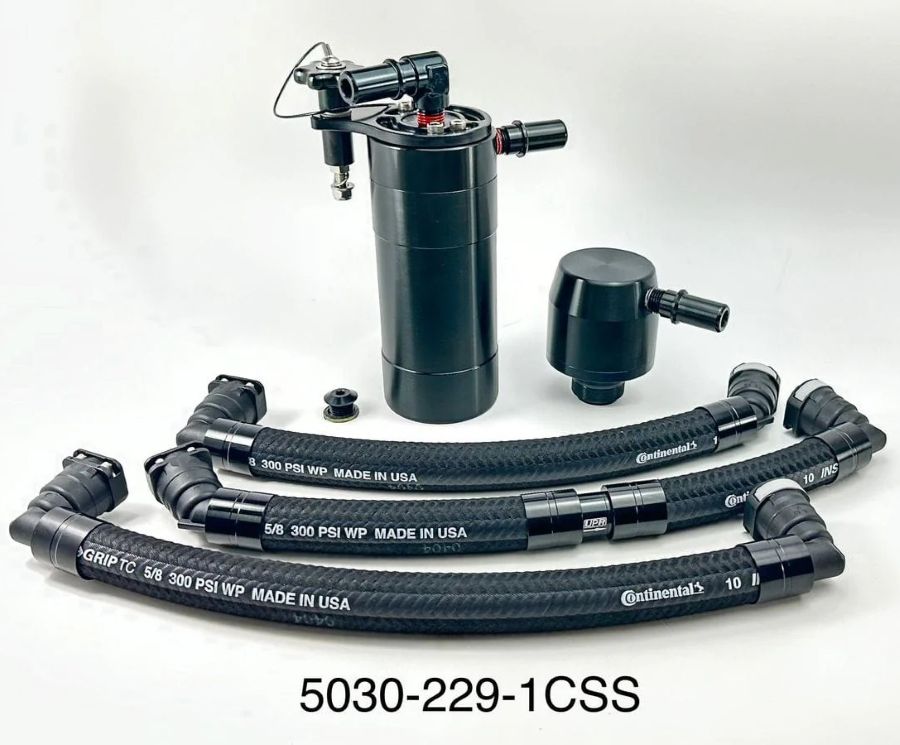

 INCLUDES

• Billet Check Valve
• 5/8" Continental Braided Hoses
• Billet Adjustable Mounting Bracket
• Plug N Play™ quick release connectors & billet fittings
• Single Valve Billet Catch Can (Exclusive 4 Stage Design)
• Clean Side Separator (Multi Stage Filtration) New Low Profile Design

OPTIONS

UPR Billet Pro Series Check Valves:

These are larger higher flowing check valves than the standard check valve. It will increase the vacuum through the catch can and deliver better crankcase evacuation. The improved crankcase evacuation translates to increased MPG and more responsive low speed drivability. The arrow printed on the check valve will always need to face away from the catch can. There is no down side to having a check valve in a Naturally Aspirated (NA) application, and a check valve in required in boosted applications. The larger, higher flowing Pro Series Check Valve also has a hex nut on the body so you can disassemble it for inspection and cleaning.

SS Magnetic Drain Plug:

The Stainless Steel magnetic drain plug would replace the drain plug on the bottom of the catch can with an allen head plug that has a magnet embedded into it. It will attract any ferrous metal material to it so the user can inspect it. If you select this option you can not also use the Drain Line kit below.

Drain Line Kit:

The drain line kit includes a drain valve, hose and fittings needed to install the drain valve. It allows the user to relocate the drain somewhere easier to access like the wheel well opening or bumper area. If you select this option you can not also use the Magnetic Drain Plug.

**Choose either the stainless steel magnetic drain plug or the UPR drain line kit, you would not need both**

Replacement O-Rings:

Spare O-rings for the catch can cup. If the O-ring is lost, torn or if it's just time to replace it due to wear it's a good idea to have a couple of spares in the glove box. 5030 is the main dirty side catch can and 5043 is the clean side separator.
