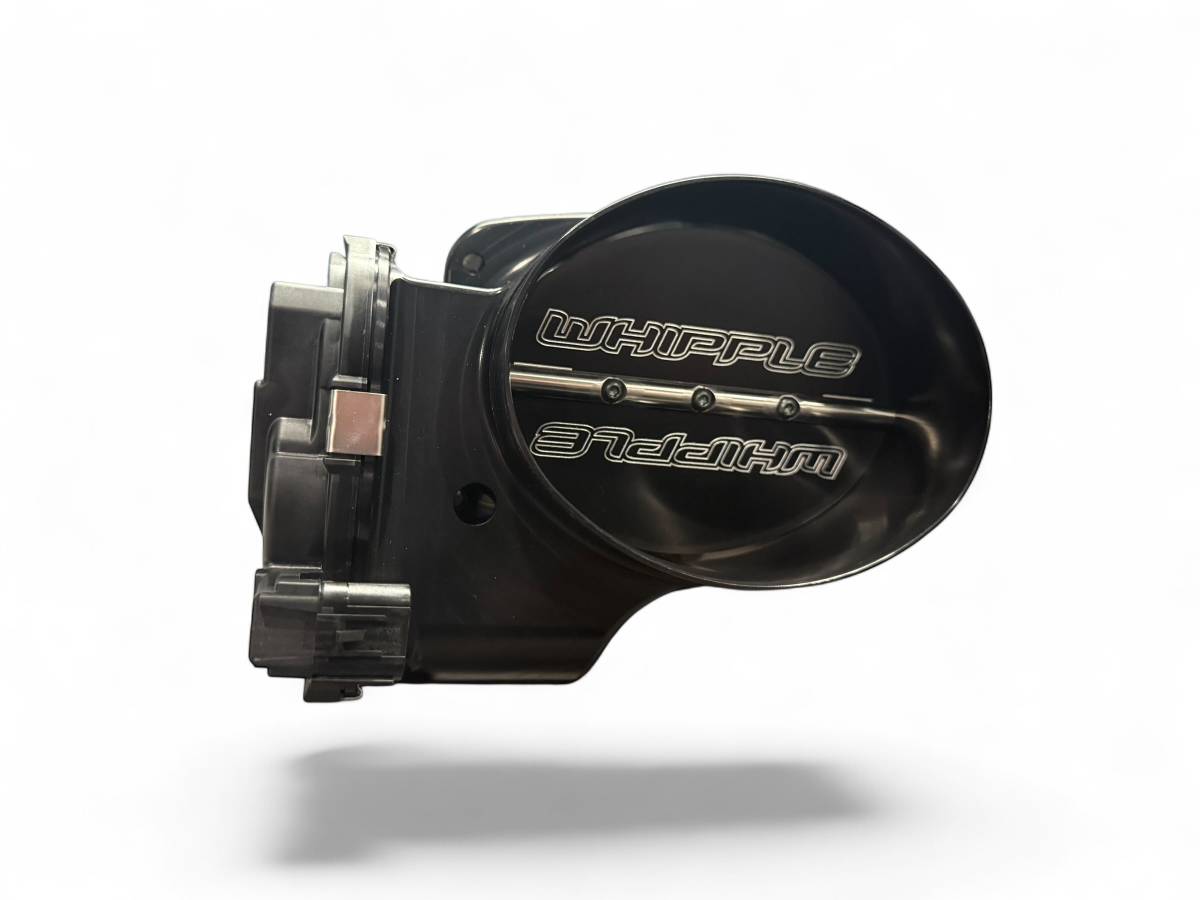

Whipple Billet Throttle Body Upgrade Kit - 2.9L (2018-2020 F150 5.0L)

As airflow demands increase in supercharged Ford F-150 applications, Whipple offers a billet-machined 132mm elliptical electronic throttle body upgrade kit designed for 2018-2020 Ford F-150 5.0L platforms equipped with Whipple supercharger systems. This throttle body is engineered to deliver increased airflow capacity while retaining precise electronic throttle control.

Often referred to as the "Roval" due to its unique elliptical blade geometry, this throttle body bolts directly to Whipple F-150 supercharger inlet housings for a clean, bolt-on installation. With airflow capability exceeding 2000 CFM, it is intended to support high-output F-150 supercharged builds without becoming a restriction.

Performance Notes:

• Gains of nearly 40 horsepower reported on standard Whipple F-150 supercharger systems at typical boost levels
• Larger gains observed on modified engines with increased airflow demand when properly tuned

The throttle body reuses the factory electronic throttle motor and is pre-flowed and calibrated to support repeatable idle quality and smooth throttle response when paired with appropriate tuning.

Fitment:

• 2018-2020 Ford F-150 5.0L with compatible Whipple supercharger systems

Installation Notes:

• Requires custom tuning
• Upgrade kit includes the billet throttle body and necessary adapters for connection to Whipple air tube systems

Features:

• Billet 132mm elliptical electronic throttle body upgrade kit
• Designed for Whipple F-150 supercharger systems
• Rated at over 2000 CFM airflow capacity
• Uses factory electronic throttle motor
• Direct bolt-on to Whipple supercharger inlet
• Includes adapters for Whipple air tube connections
